Brand: Silicon Hoses
Code: B-70
70mm Bellows hose
£14.29

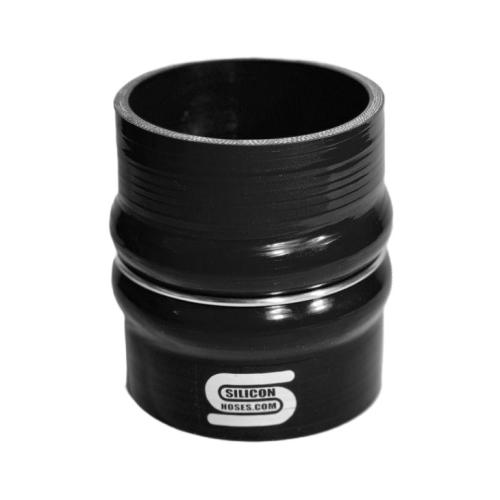

70mm Bellows Hose
High-quality reinforced silicone bellows hose designed to allow movement and flexibility in automotive intercooler and intake pipework systems.
Product Overview
This silicone bellows hose is designed to accommodate movement and vibration within pipework systems. The flexible bellows section helps prevent stress on rigid pipework and improves reliability in intercooler, turbo and intake installations.
Key Features
- Flexible bellows design to absorb movement and vibration
- Reinforced silicone construction for durability
- Integrated stainless steel rings for structural support
- Suitable for intercooler, turbo and intake pipework
- Excellent resistance to heat and ageing
Technical Specifications
| Specification | Details |
|---|---|
| Inside Diameter | 70mm (2 3/4") |
| Overall Length | 100mm (4") |
| Wall Thickness | 3.5mm (1/8") |
| Number of Convolutions | 2 |
| Stainless Steel Rings | 3mm Diameter |
| Reinforcement Layers | 3 |
| Reinforcing Material | Polyester |
| Liner | Silicone |
| Operating Temperature | -40°C to +180°C |
