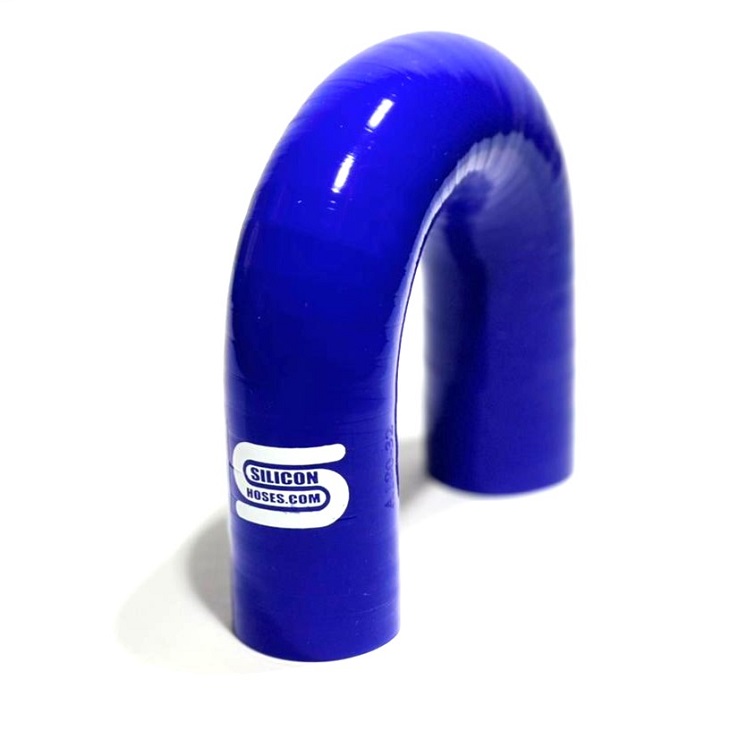

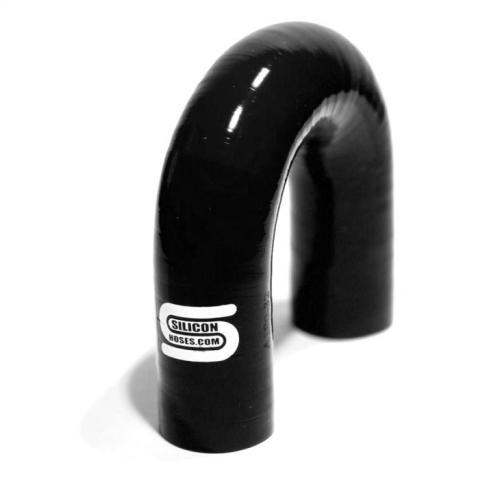

32mm Elbow - 180°

£17.01


Brand: Silicon Hoses

Code: A180-32


32mm Elbow - 180°

Technical Details

  • All elbows have equal leg lengths of 63mm up to 12mm diameter, 100mm from 13mm diameter up to 57mm, and 125mm from 60mm diameter up to 102mm diameter.
  • From 6mm diameter up to 48mm diameter are of 3 ply construction, and a wall thickness of 3.5mm.
  • From 49mm diameter up to 83mm diameter are of 4 ply construction, and a wall thickness of 5mm.
  • From 84mm diameter up to 102mm diameter are 5 ply construction, and a wall thickness of 6mm.
  • Burst pressures are rated at 4:1 of safe working load. Separate test sheet results available.

Tags

  • Hose angle
    • 180°
  • Hose colour
    • Black
    • Blue
  • Hose type
    • Elbows
  • Inside diameter
    • 32
  • Material
    • Silicone/Polyester
