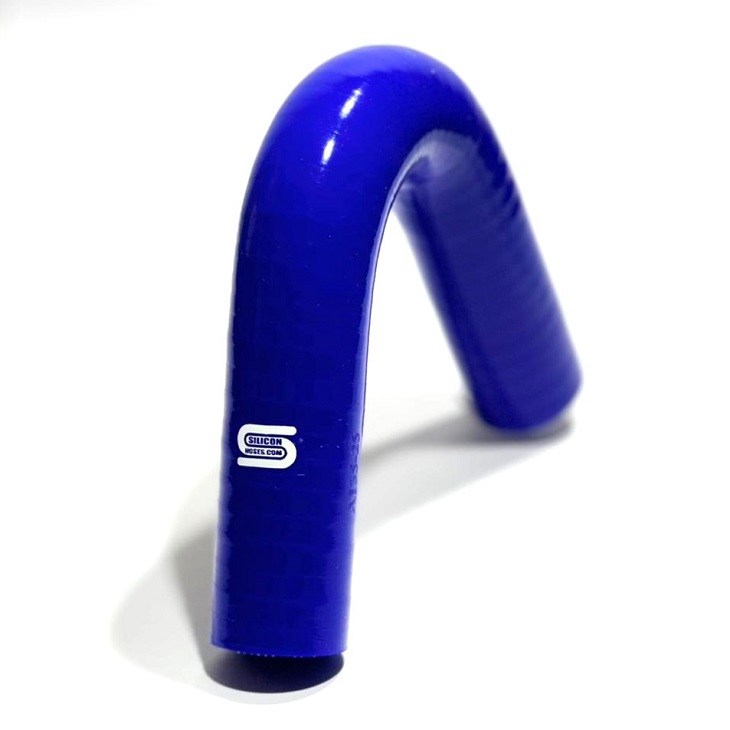

25mm Elbow - 135°
£12.93
Brand: Silicon Hoses
Code: A135-25
25mm Elbow - 135°
Technical Details
- All elbows have equal leg lengths of 63mm up to 12mm diameter, 100mm from 13mm diameter up to 57mm, and 125mm from 60mm diameter up to 102mm diameter.
- From 6mm diameter up to 48mm diameter are of 3 ply construction, and a wall thickness of 3.5mm.
- From 49mm diameter up to 83mm diameter are of 4 ply construction, and a wall thickness of 5mm.
- From 84mm diameter up to 102mm diameter are 5 ply construction, and a wall thickness of 6mm.
- Burst pressures are rated at 4:1 of safe working load. Separate test sheet results available.
Technical Details
- Inside diameter: 25mm (1") .
- Leg length: 100mm (4").
- Elbow angle: 135 Degree.
- Wall thickness: 3.5mm (1/8").
- Layers of reinforcing fabric: 3.
- Reinforcing material: Polyester.
- Liner: Silicone.
- Operating temperature: -40°C to +180°C.
