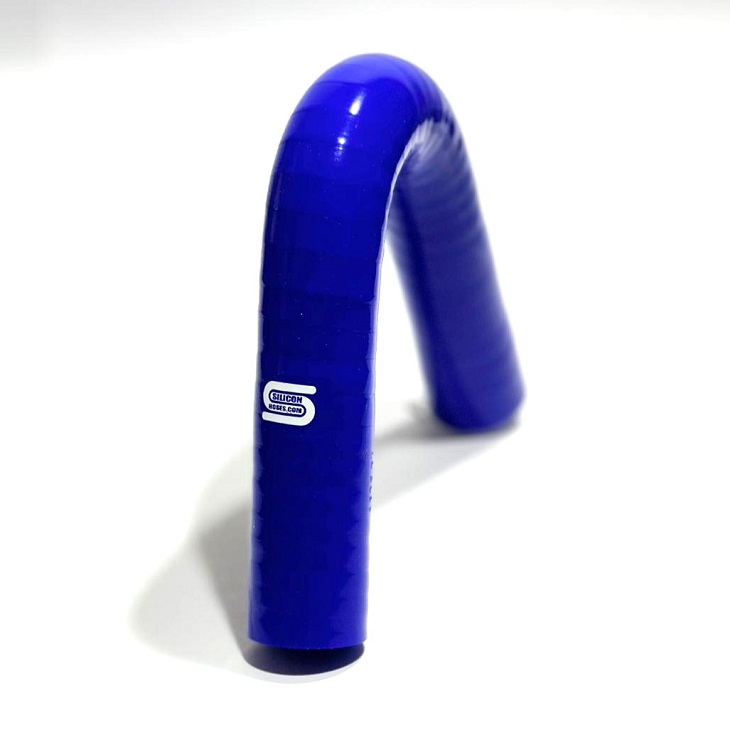

22mm Elbow - 135°
Brand: Silicon Hoses
- All elbows have equal leg lengths of 63mm up to 12mm diameter, 100mm from 13mm diameter up to 57mm, and 125mm from 60mm diameter up to 102mm diameter.
- From 6mm diameter up to 48mm diameter are of 3 ply construction, and a wall thickness of 3.5mm.
- From 49mm diameter up to 83mm diameter are of 4 ply construction, and a wall thickness of 5mm.
- From 84mm diameter up to 102mm diameter are 5 ply construction, and a wall thickness of 6mm.
- Burst pressures are rated at 4:1 of safe working load. Separate test sheet results available.
